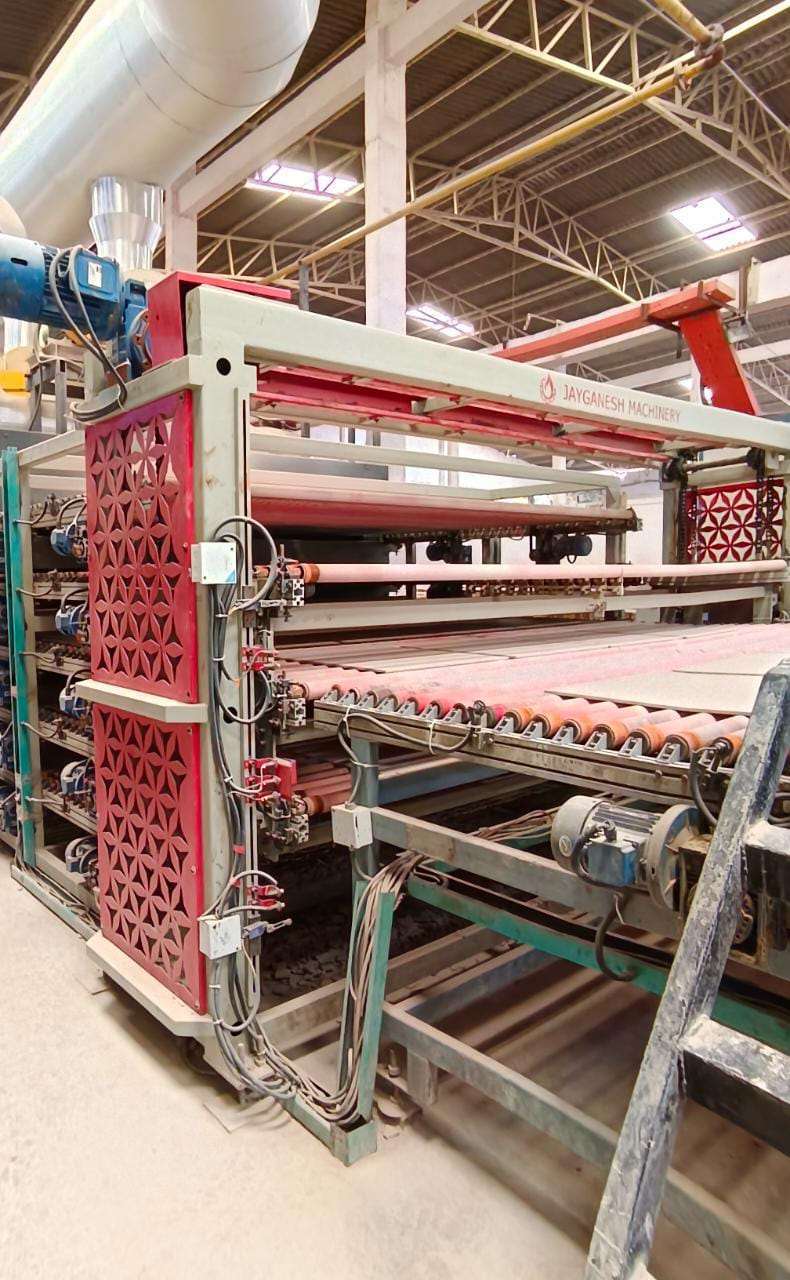

Elevator (for Multi-Layer Dryer)
High-speed vertical tile sorting elevator.
The JAYGANESH Elevator is a key automation component for multi-layer drying lines. It moves vertically at high speeds to load tiles from the single-level press/glazing line onto the five or seven layers of the dryer, and vice versa at the outlet.
Quick Specs
| Type | Multi-layer Dryer Elevator |
| Drive | Servo-motor driven linear guide |
| Application | Vertical sorting for 5-layer and 7-layer dryers |
- High-speed vertical linear guide rails with servo motors
- Automatic level alignment sensors matching dryer conveyor lines
- Smooth acceleration and deceleration profile curves
- Crucial for automating multi-layer drying processes
- High operating speed matches rapid press production cycles
- Eliminates manual handling and prevents tile damage during vertical sorting
Match Accessories
Related Equipment
Automation
Timing Belt Roller Table
Smooth, vibration-free tile transport for glazing and printing lines.The JAYGANESH Timing Belt Roller Table ensures steady, slip-free movement of tiles between processing stages. ...
Automation
Driving System Roller Table
Robust gear-driven transport for heavy kiln and raw tile zones.Engineered with a high-torque gear driving system, this table is built to transport heavy tiles and slab loads...
Automation

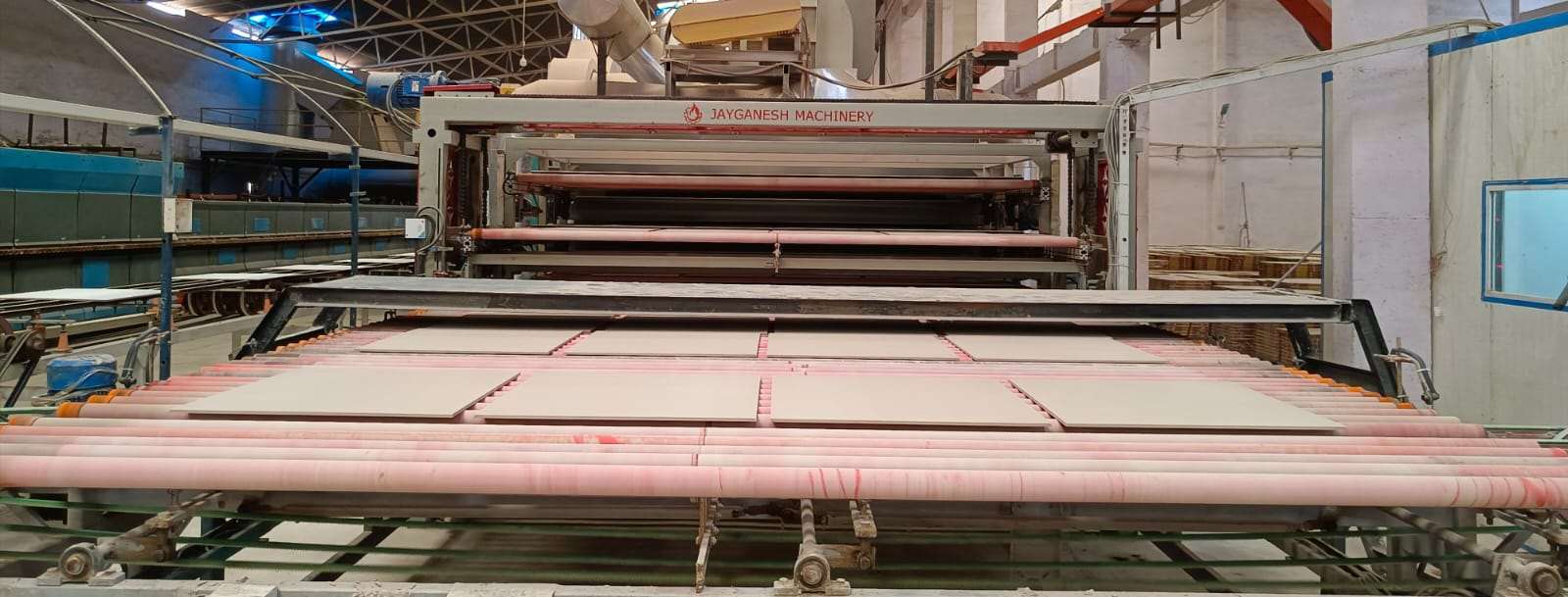

Press Feeding Table
